CNC Turned & Ground Motor Shafts

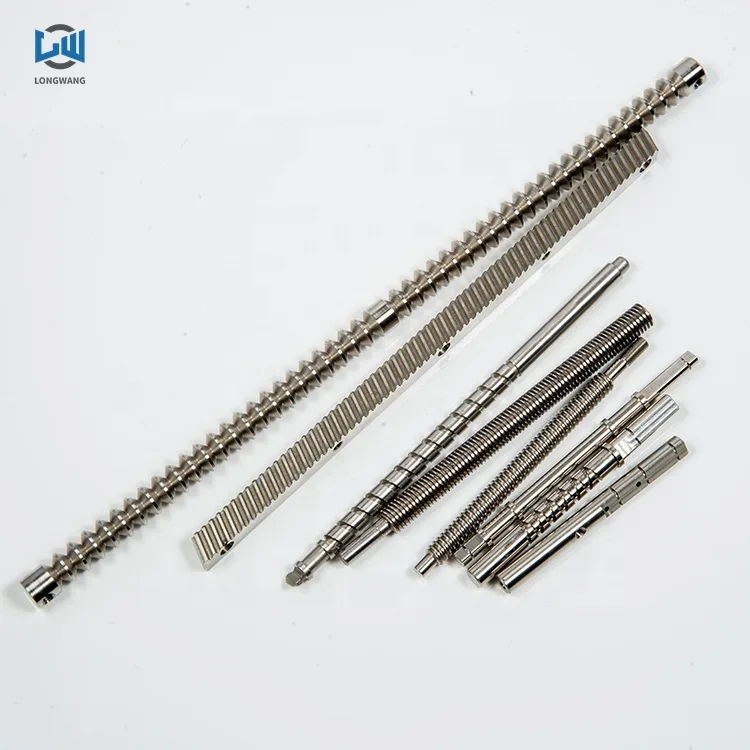

Custom motor shafts, spindles and pins turned and precision ground in stainless steel 304 and alloy steel, with keyways, flats and threads.
| Process | CNC turning, cylindrical grinding, milling (keyways, flats) |
|---|---|
| Materials | Stainless steel 304/416/420, 45# (1045), 40Cr, alloy steel |
| Finishes | Grinding, black oxide, nickel plating, heat treatment |
| Order | Custom made to drawing · prototypes & small batches welcome |
Send PDF / STEP / DWG · NDA available · Engineer reply within 24h
Precision Shafts for Motors and Drives
Motor shafts need accurate bearing journals, good straightness and clean keyways. We turn shafts on CNC lathes, mill flats and keyways, and finish critical diameters by cylindrical grinding.
- Bearing journals finished by grinding
- Keyways, flats, D-cuts and threads
- Heat treatment and surface finishing on request
Specifications
| Item | Details |
|---|---|
| Product | CNC Turned & Ground Motor Shafts (custom, OEM / ODM) |
| Process | CNC turning, cylindrical grinding, milling (keyways, flats) |
| Materials | Stainless steel 304/416/420, 45# (1045), 40Cr, alloy steel |
| Surface finish | Grinding, black oxide, nickel plating, heat treatment |
| Tolerance | ISO 2768-m standard; tighter on critical features after drawing review |
| Drawing formats | STEP, STP, IGES, X_T, PDF, DWG, DXF |
| Applications | Electric motors, gearboxes, pumps, automation and appliances |
| Quantity | Prototype samples to batch production |
| Inspection | Dimensional inspection before shipment; report on request |
| Packaging | Individual protection, carton or wooden case; custom packaging available |
How to Order CNC Turned & Ground Motor Shafts
Send drawing
Upload your 2D/3D files, quantity, material and finish.
DFM & quote
An engineer reviews the part and sends a clear quotation.
Sample
Prototype or first article for your approval.
Production
Batch machining, finishing and inspection.
Delivery
Safe packing and worldwide express or freight shipping.
Related Products
CNC Turned Brass & Aluminum Hardware Fittings
Automatic-lathe turned brass and aluminum fittings, nuts, connectors and lighting hardware in colorful anodized or…
View product →
CNC Machined Valve Cover Prototypes
Rapid prototype valve covers and caps machined in aluminum, brass, titanium, stainless steel or PEEK for design…
View product →
CNC Machined Aluminum Panels & Brackets
Custom CNC machined aluminum and brass panels, plates and brackets
View product →Related Services
Frequently Asked Questions
Can you grind bearing seats?
Yes. Critical diameters can be finished by cylindrical grinding; please mark tolerances on your drawing.
What lengths can you make?
Short pins to long shafts are possible; send your drawing to confirm length and straightness requirements.
What is the minimum order quantity?
We accept prototype samples and small batches. A minimum order charge may apply to very small orders and is shown clearly on the quote.
How do I get a price?
Send your drawing with quantity, material and finish via the quote form or WhatsApp. Custom parts are priced per drawing; we reply within 24 hours on working days.
Have a Drawing? Let’s Review Your Project.
Send your PDF, STEP or DWG file with quantity and material. An engineer reviews every drawing and replies with a quotation and DFM suggestions — usually within 24 hours.
